Product Description

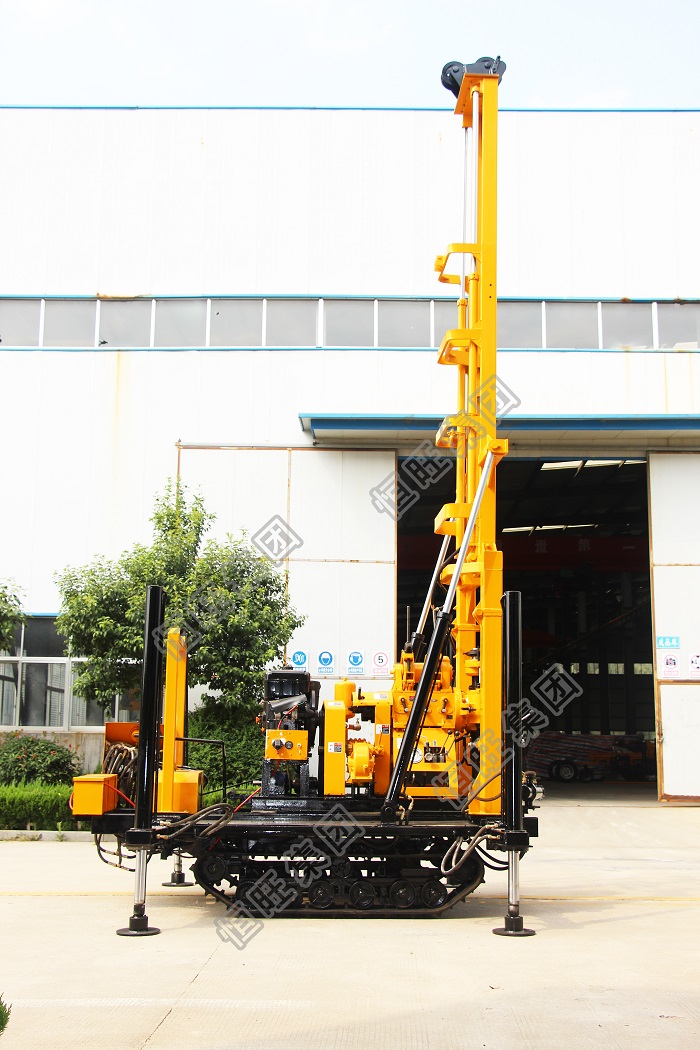

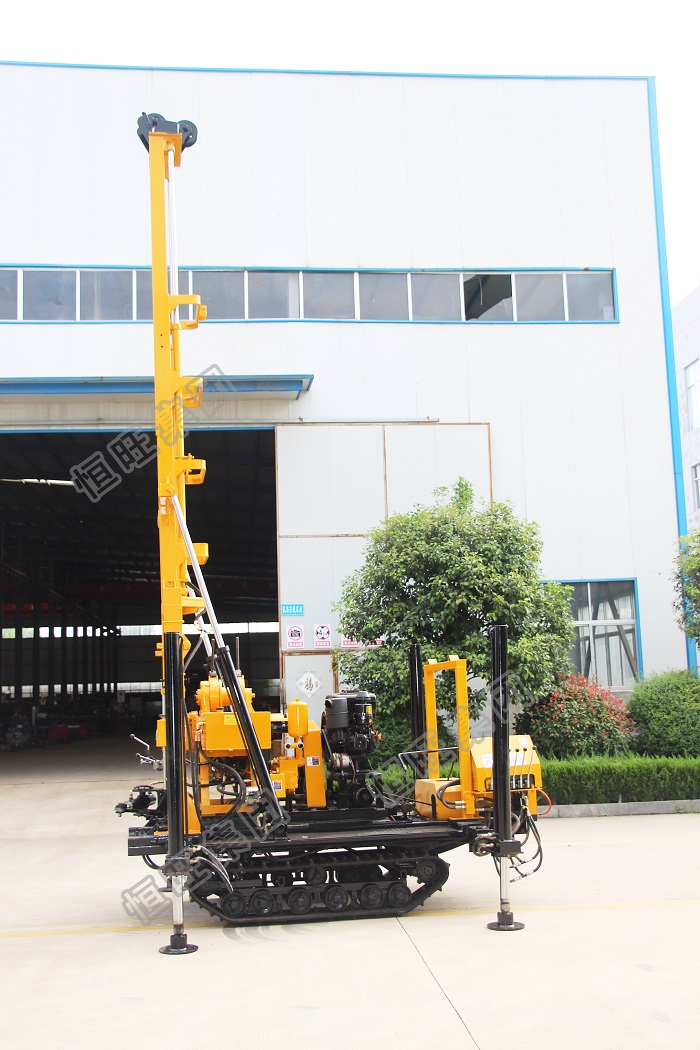

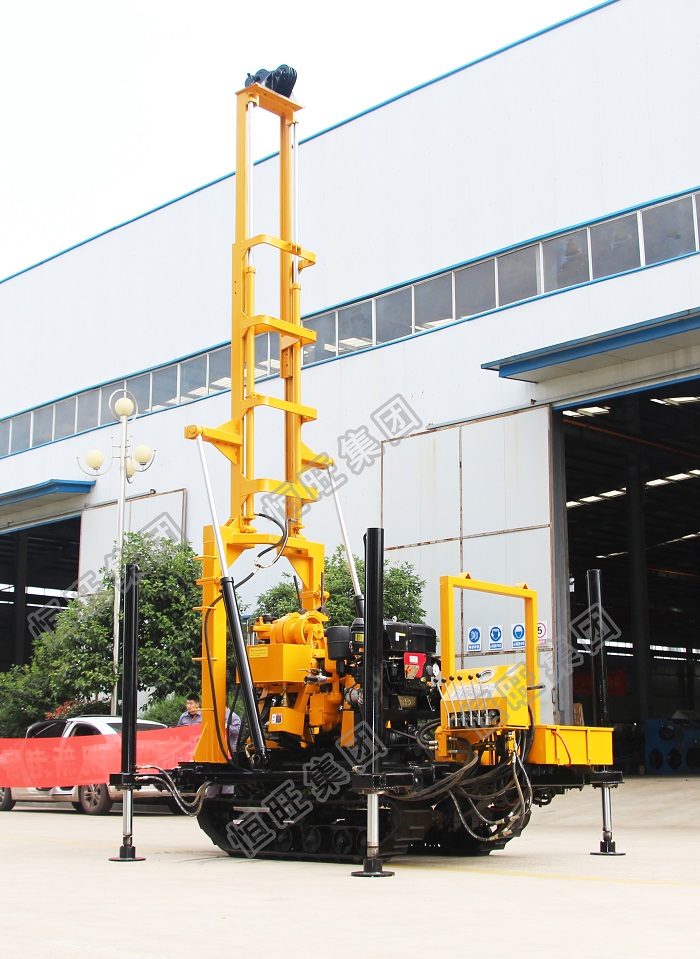

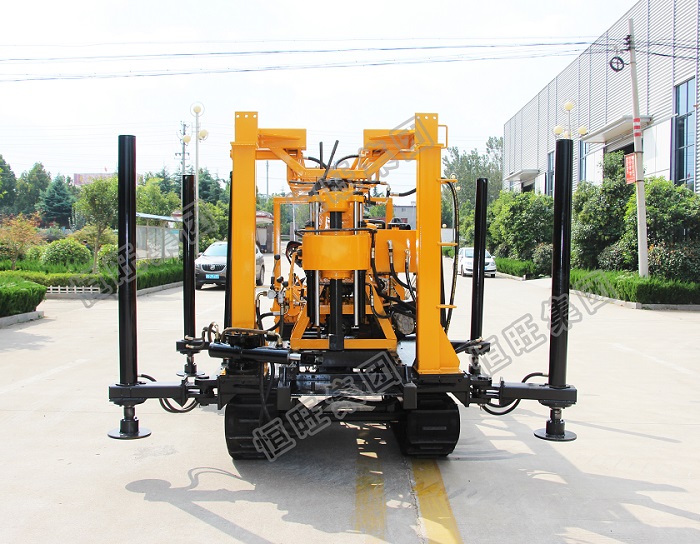

Product Description Our product HW-230 portable water well drilling rig equipped with BW-160 mud
Pump and 22HP diesel engine, Max. drilling depth can be 230m with
the opening diameter of 75-400mm, trailer, crawler, and
Tractor chassis for choice.
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.

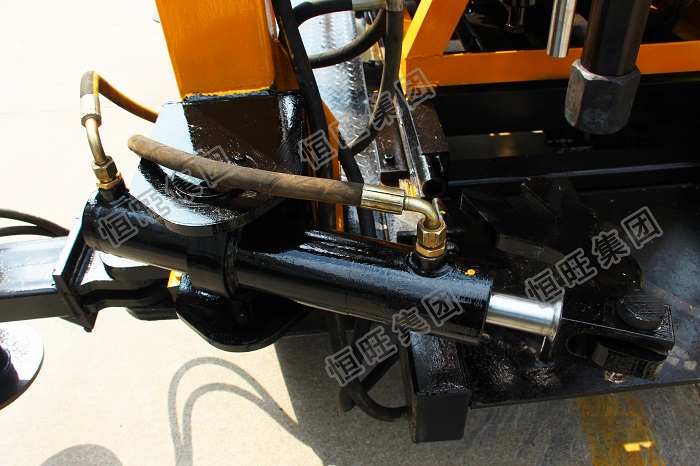

d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the
labor intensity.
Product Paramenters
SPECIFICATIONS FOR HW-230 WATER WELL DRILLING RIG
| | | |
Model | HW-230 | Spindle Speed | 64~1045(r/min) |
Max.Drilling depth | 160m/190m/230m | Spindle Stroke | 450mm |
Soil Open hole dia. | 500mm/500mm/500mm | Winch single rope lift force | 2000kg-2500kg |
Rock Open hole dia. | 220mm/220mm/273mm | Winch single rope lift speed | 0.12-1.64(m/s) |
End hole dia. | 75mm~200mm | Winch Rope dia. | 9.3mm/9.3mm/12..5mm |
Drill rod dia. | 42/50/60 | Winch Rope capacity | 27M/27M/35M |
Drill angle | 90-75° | Drill Mast Rated load | 18T |
Engine Power | 13/14/16KW | Drill Mast Effective height | 6.5M |
Weight | 600KG/650KG/880KG | Mud pump Flow | 95~145L/min |
Dimension | 2.7*0.9*1.5 | Mud pump Max.pressure | 1.2~2Mpa |
Inlet hose dia.(mm) outlet hose dia.(mm)32mm
| 51mm | Mud pump reciprocations time | 93 times/min |
Company Introduction Shandong Hengwang Group Co., LTD. Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city
,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery ,water well driling machine
and conctruction machinery design, manufacture and installation of an integrated enterprise.

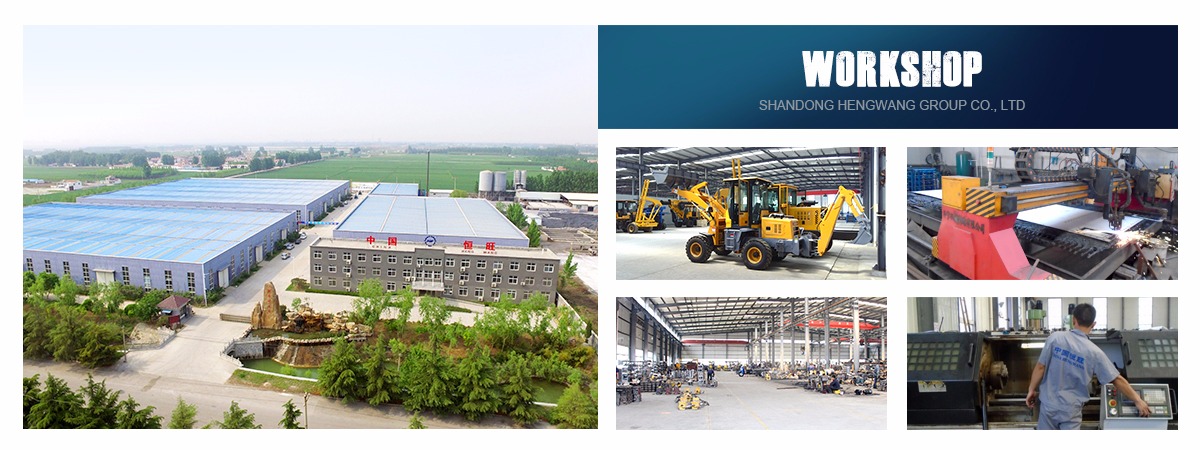

Factory
Attachment Packing and Delivery
