Product Description
Product DescriptionHW LIGHT TOWERVehicle mounted
Light Tower is mainly used in outdoor operations, emergency rescue, road maintenance, and emergency lighting. Lifting methods are divided into three categories: pneumatic lift, hydraulic lift, and hand lift. Lighting angles are divided into: remote control of the transport platform up and down, left and right 270 degrees of rotation, and hand-controlled lighting up and down, left and right illumination angle. Move mode: mainly install a base plate under the generator and then fix the four wheels, which is easy to carry and move.
This vehicle mounted light tower applicable to a variety of indoor and outdoor workplaces. China's coal industry, PetroChina, Sinopec, CNOOC, power, metallurgy, railways, iron and steel, ships, aerospace, public security fire, chemical, government departments and large corporate lighting needs. Portable mobile led light tower has two power,you can choose diesel engine or gasoline.
SPECIFICATIONS FOR HW LIGHT TOWER |
| Model | | HW-400B | HW-1000A | HW-1000B |
| | EC2500CX/ | EC4000CX/ | EC4000CX/ | EC6500CX/ |
| 3GF-LED | 3GF-LED | 3GF-LED | 5GF-LED |
| Type | Air cooled, 4stroke, OHV gasoline engine
| Air cooled, 4stroke, single cylinder direct injection type diesel engine |
| Generator Types | Single-phase alternator |
| Rated Power | 2.0kw | 3.0kw | 3.0kw | 5.0kw |
| Rated Voltage | |
| Continuous working time (hour) | | |
| Oil Tank | 15L/12.5L | 25L/12.5L | 25L/12.5L | 25L/16L |
| Power*lamp | 400W*2 | 400W*4 | 1000W*2 | 1000W*4 |
| Stanchion Lamp frame | 3 sections | 4 sections | 4 sections | 4 sections |
| Elevating height | 1800-3800mm | 1800-4600mm | 1800-4600 | 2000-5600mm |
| Anti-slope | <10° |
| Anti-wind | <6 |
| Walk type | Hand push type |
| Total luminouness | 72000Lm | 144000Lm | 220000Lm | 440000Lm |
| Lamp | Metal halide lamp |
| Elevating mode | By hand-operated |
| Net weight(kg) | 95/165kg | 120/175kg | 110/210kg | 140/230kg |
Detailed Images
Machine PartsName:

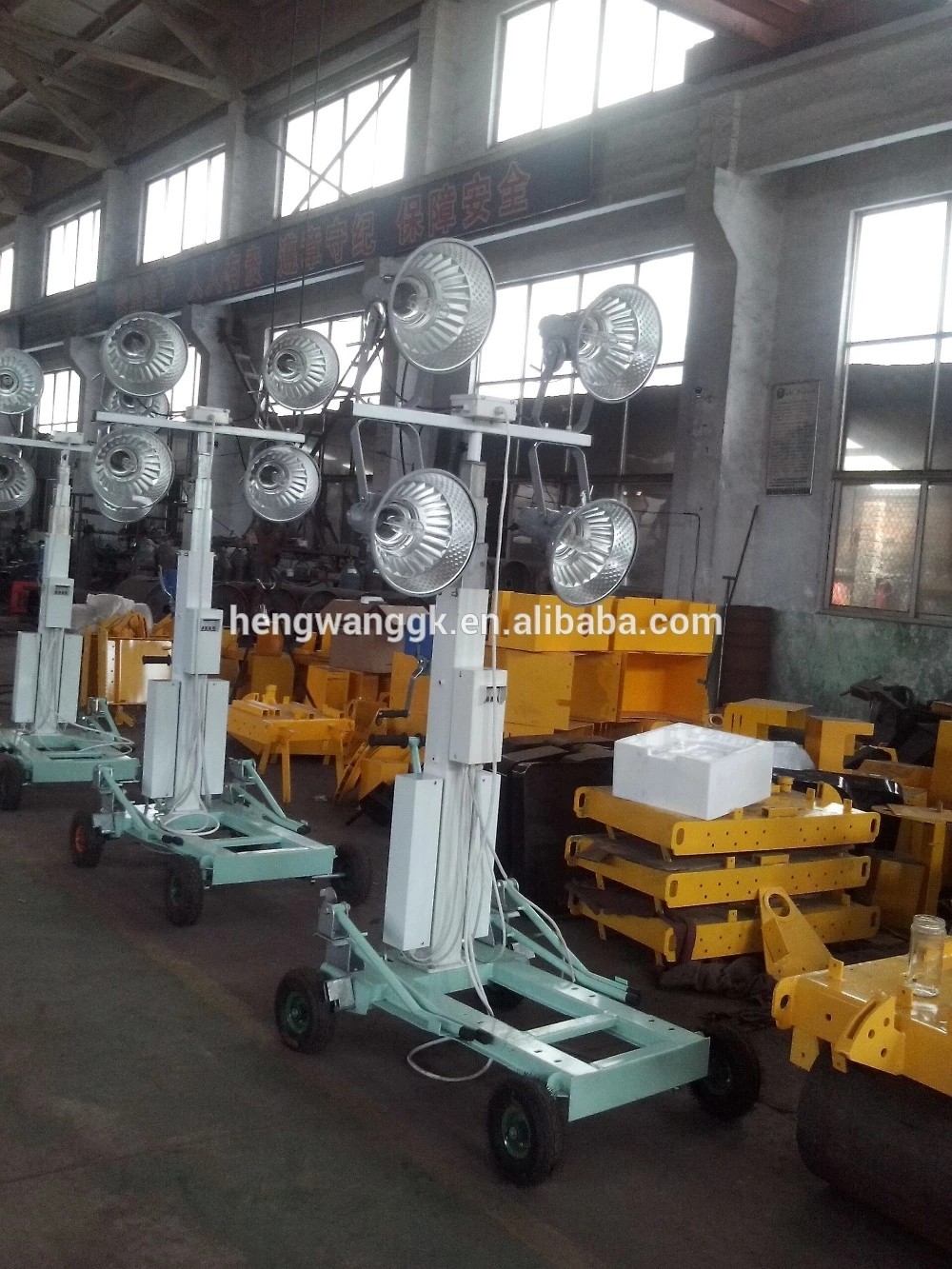

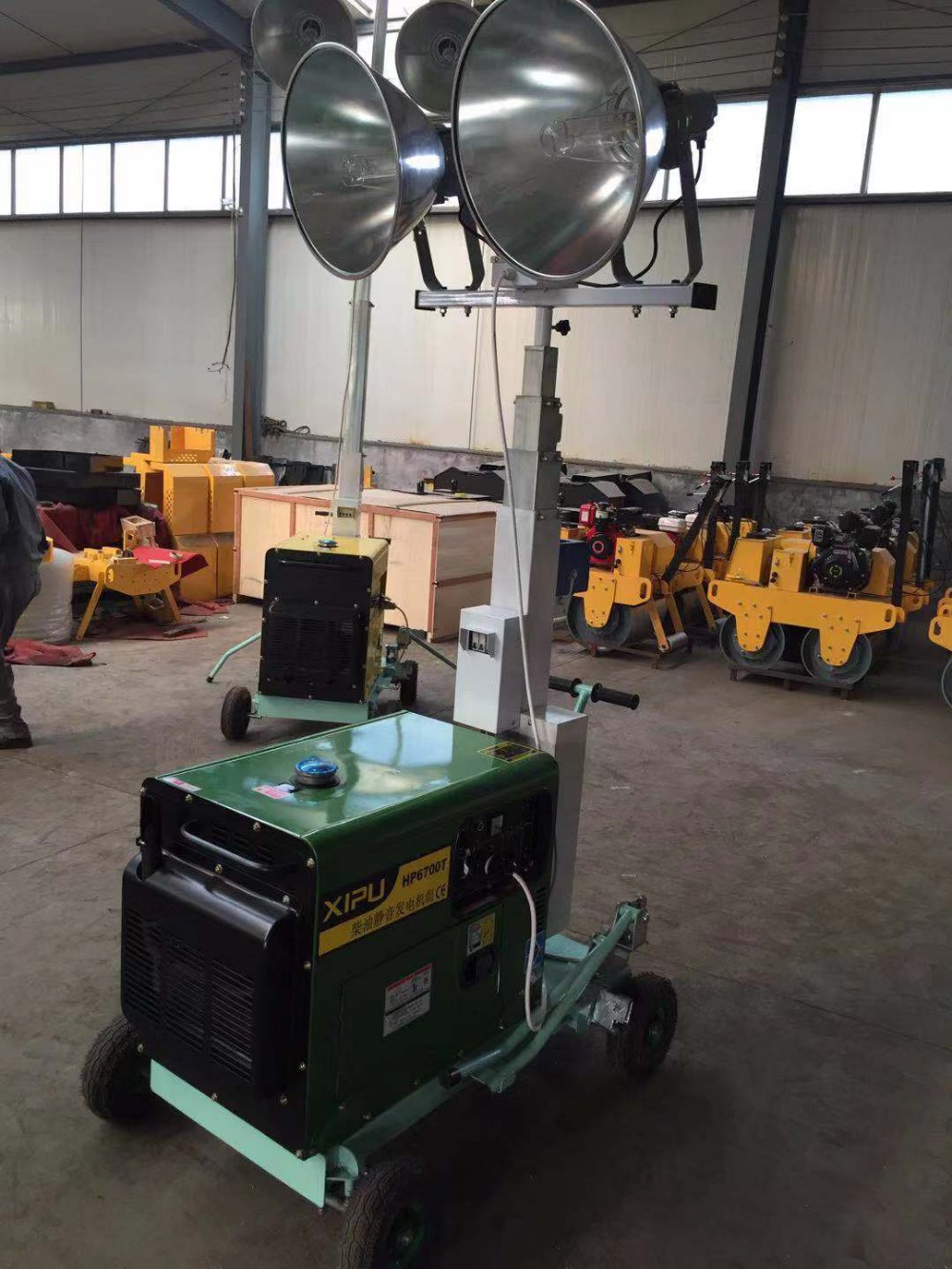

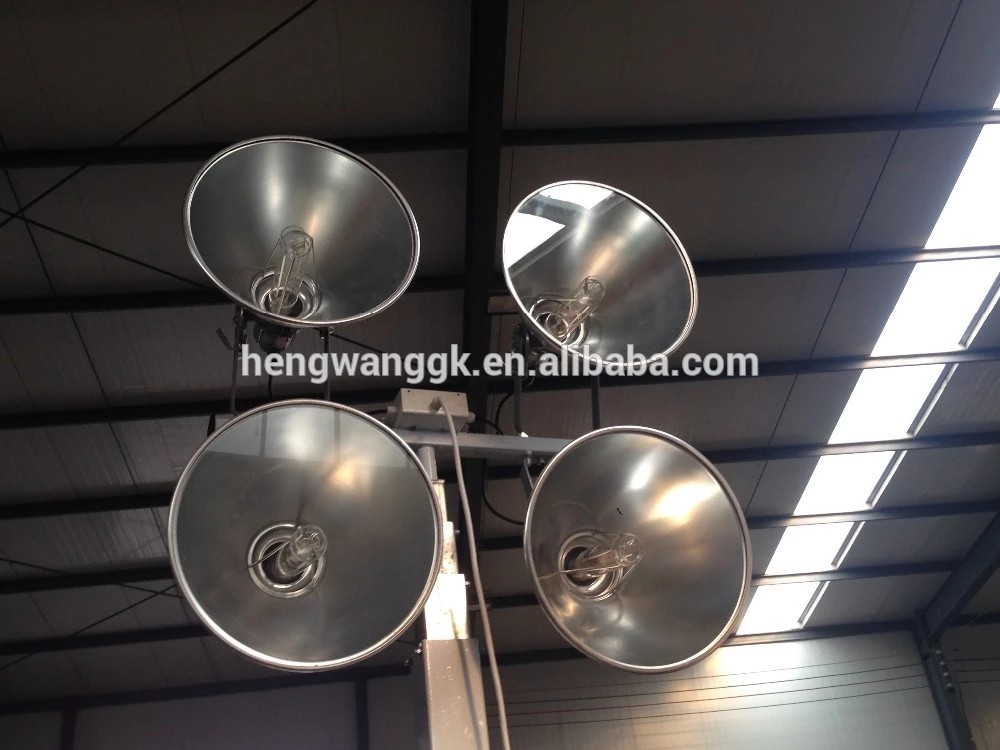

Mobile Light Tower Brand: HW Original: China400-1000 watt metal halide light fixture, high brightness, long service life
Main FeaturesName: Mobile Light Tower
Brand: HW
Original: China

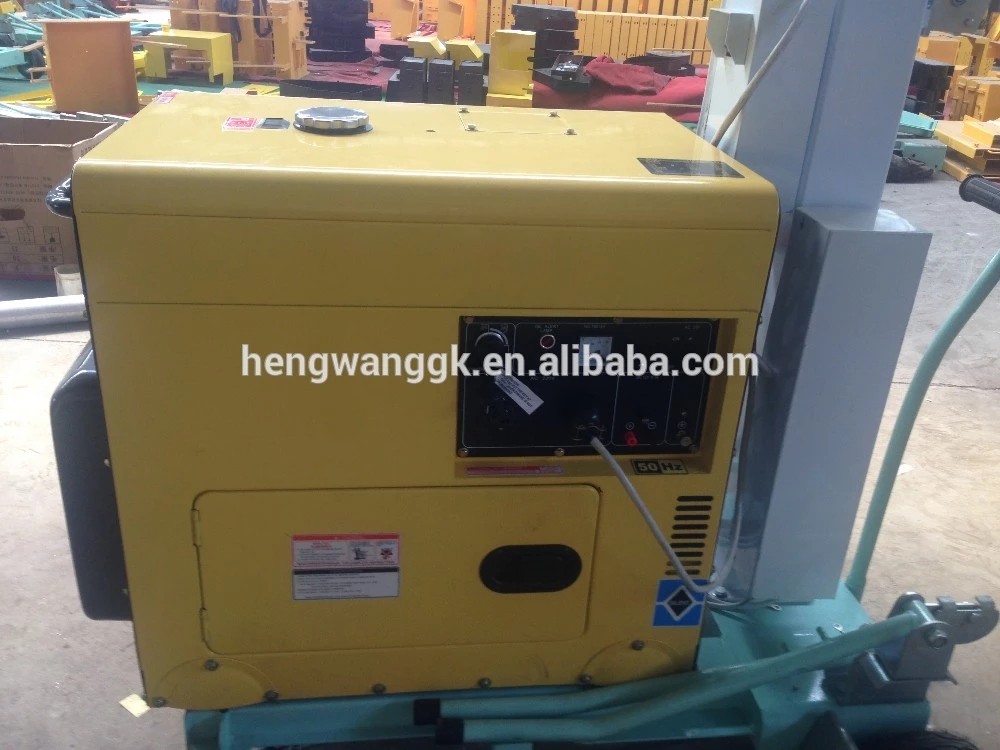

Powered by Honda petrol generator/ Mitsubishi petrol generator/ Kipor diesel generator.

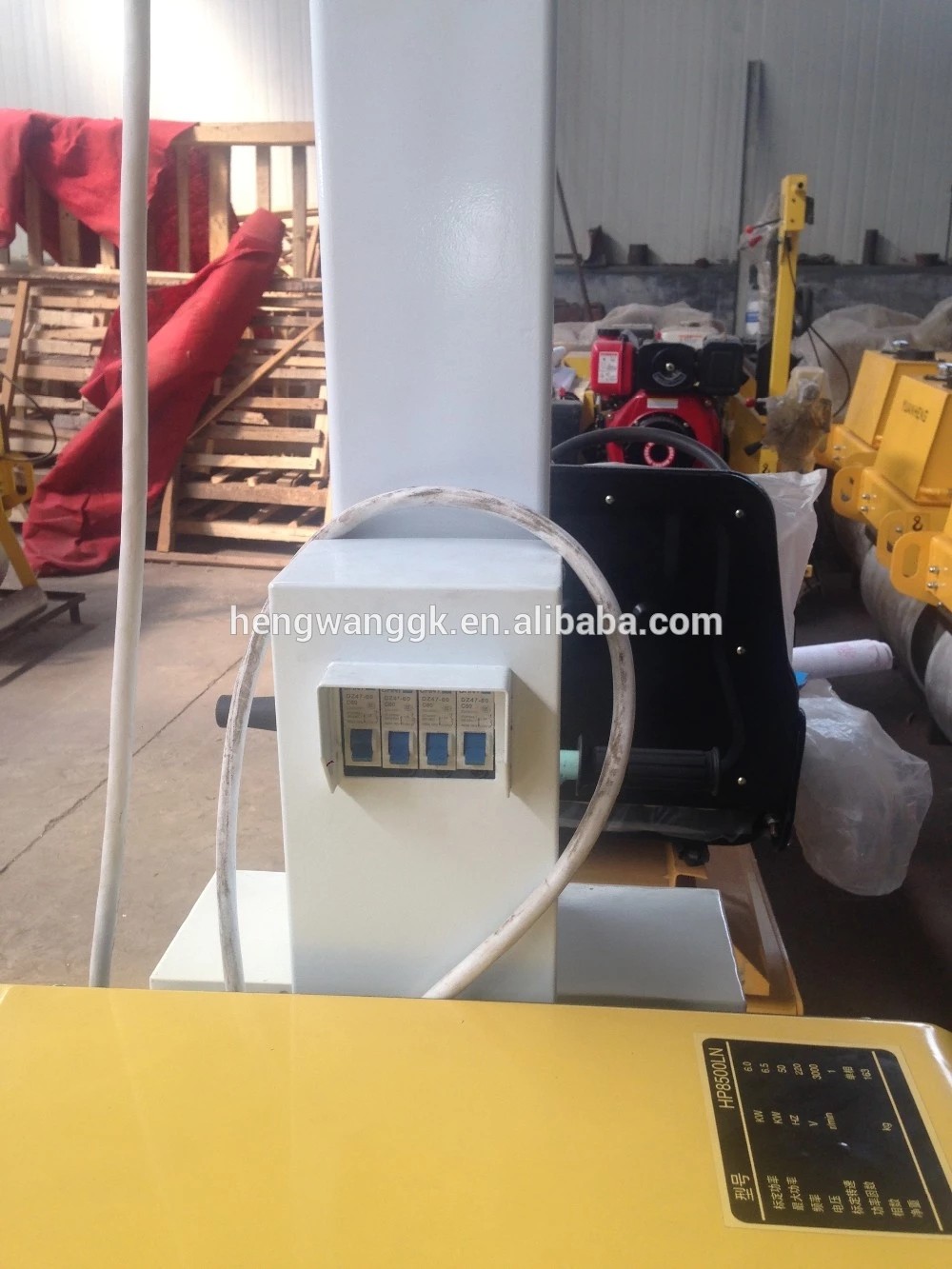

Weatherproof switch/control box – ensures the use safely in the rain day.
Machine PartsName: Mobile Light Tower
Brand: HW
Original: China
Manual lifting mechnaism, lifting flexible, any height, automatic lock.
Lamp Frame 4 sections elevating.
Main FeaturesName: Mobile Light Tower
Brand: HW
Original: China
Certifications
Our Service
Packing & Delivery
| Packaging |
| | 1100 (L) * 900(W) * 1800 (D) |
| | 230kg |

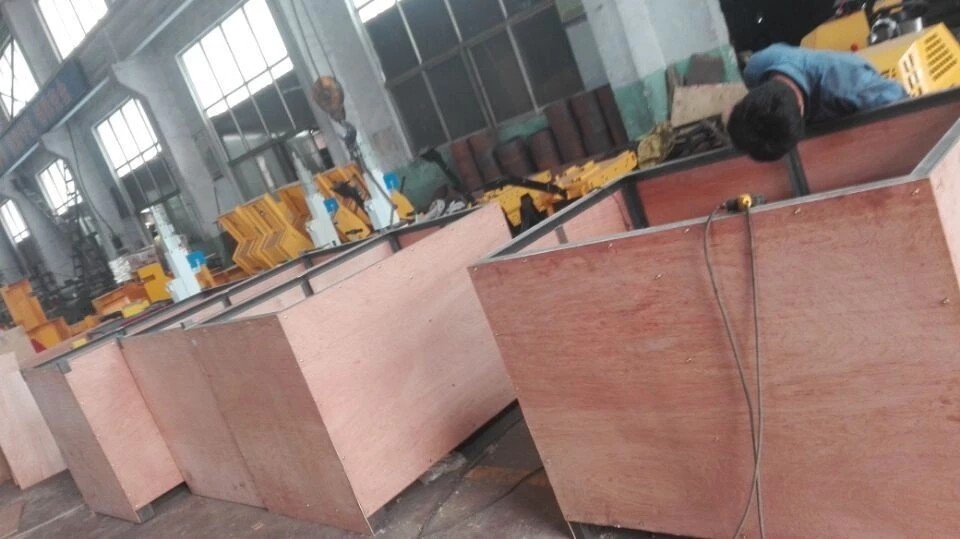

| | The normal package is wooden box(Size: L*W*H). |
